XCD 3,2-4,5/20-35E is a versatile zoom lens that covers wide and ultra-wide focal lengths. Boasting a superior optical design, a flexible focusing module, and a high-performance leaf shutter, it can effortlessly master a variety of themes like natural landscapes, urban landscapes, vast interior spaces, and environmental portraits with unparalleled visual power. Grab this lens to carve out images that are uniquely yours and immerse yourself in vibrant stories of light and shadow.
The ultra-wide 20mm focal length is the widest in the Hasselblad X System.* Coupled with an f/3.2 aperture, it offers an extraordinary combination of the widest field of view, and the largest aperture within the Hasselblad medium format system. Reproduce majestic landscapes with sharp imaging and capture the grandeur of the natural world.
* As of September 2024.
The lens’s small but powerful leaf shutter supports shooting with flash synchronisation at all shutter speeds with a flash sync speed of up to 1/2000s. Even under mixed light sources of flash and sunlight, you can freely explore creative inspirations and freeze every shining moment.
The lens body is crafted from metal for a subtle but timeless appeal. It is not only stable and reliable but also offers an exceptional user experience. It adopts an elegant and streamlined design with the “H” logo print engraved on both the focus ring and the zoom ring. It also features a nameplate on the barrel with branding and the “V” insignia, lending a refined and enduring beauty to your photographic journey.

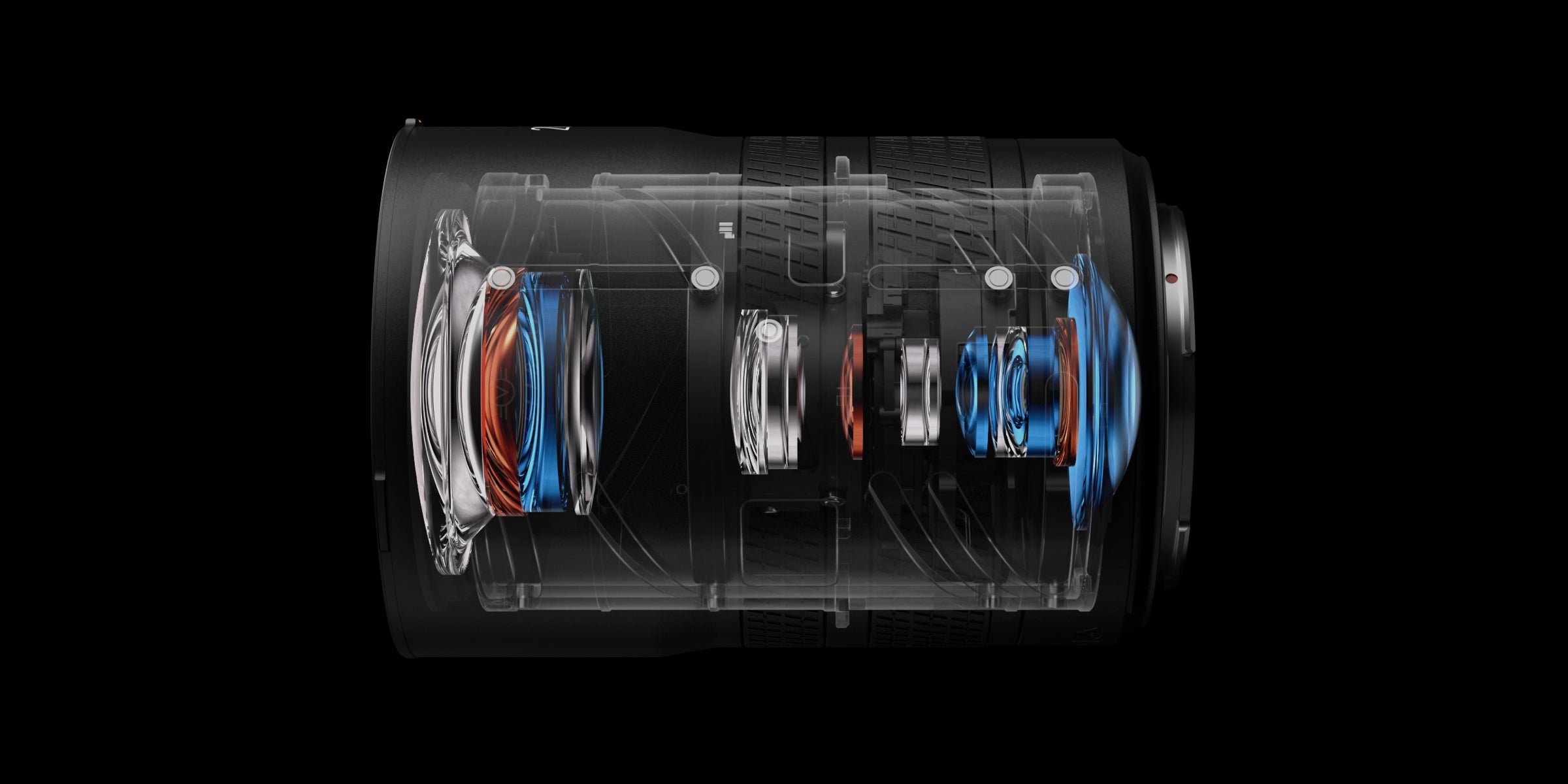

The lens adopts an optical structure of 16 elements in 12 groups, including three aspherical elements (orange) and four ED elements (blue). It effectively suppresses aberrations and meets the high-resolution demands of the 100-megapixel sensor, delivering high-quality imaging at each focal length, and achieves stunning clarity from the centre to the edges. Every minute detail stands out; every colour is natural and authentic, and every shot embodies the intrinsic beauty of the world.
At the wide-angle end, the maximum aperture of f/3.2 is maintained, guaranteeing foreground depiction in sharp relief and a soft, delicate bokeh even in dimly lit environments.
The lens adopts an optical structure of 16 elements in 12 groups, including three aspherical elements (orange) and four ED elements (blue). It effectively suppresses aberrations and meets the high-resolution demands of the 100-megapixel sensor, delivering high-quality imaging at each focal length, and achieves stunning clarity from the centre to the edges. Every minute detail stands out; every colour is natural and authentic, and every shot embodies the intrinsic beauty of the world.
At the wide-angle end, the maximum aperture of f/3.2 is maintained, guaranteeing foreground depiction in sharp relief and a soft, delicate bokeh even in dimly lit environments.
Hasselblad X System cameras & 907X cameras
 |
 |
|
XCD 3,2-4,5/20-35E
|
XCD 3,5-4,5/35-75
|
|
Ultra-Wide-Angle Zoom Lens
|
Versatile 2x Zoom Lens
|
|
$5,929 |
$5,175 |
|
FOCAL LENGTH
|
|
|
20.0mm(35.0mm)
|
35.9mm(73.1mm)
|
|
EQUIVALENT FOCAL LENGTH (24×36)
|
|
|
28mm(58mm)
|
28mm(58mm)
|
|
APERTURE RANGE
|
|
|
f/3.2 - f/32 (f/4.5 - f/32)
|
f/3.5 - f/32 (f/4.5 - f/32)
|
|
ANGLE OF VIEW (DIAG/HOR/VERT)
|
|
|
108° / 96° / 79° (76° / 65° / 51°)
|
77° / 64° / 50° (41° / 33° / 25°)
|
|
LENGTH/DIAMETER
|
|
|
117mm / 81mm
|
145mm / 85mm
|
|
WEIGHT (EXCL. COVERS AND LENS SHADE)
|
|
|
805g
|
1115g
|
|
FILTER DIAMETER
|
|
|
77mm
|
77mm
|
|
MINIMUM DISTANCE OBJECT TO IMAGE PLANE
|
|
|
0.32m
|
0.42m (0.60m)
|
|
MAXIMUM IMAGE SCALE
|
|
|
1:10.6 (1:6.4)
|
1:8.5 (1:6.5)
|
|
ELEMENTS
|
|
|
16 elements in 12 groups
|
15 elements in 13 groups
|
|
FOCUS TYPE
|
|
|
Internal focusing
|
Internal focusing
|
The leaf shutter is built into the lens structure. Its most significant advantage is that it can achieve flash synchronisation at all speeds (e.g., flash sync speed of up to 1/2000s). This helps capture fast-moving subjects when a flash is used and is also helpful for wide-aperture portraits in strong lighting conditions or outdoors. Due to the special design of the leaf shutter, it generates significantly reduced vibration when triggered, efficiently producing quality shots.
For cameras with a focal-plane shutter, when using flash, the shutter speed is limited to 1/125s or 1/250s, posing restrictions for creativity.
Yes. Full-time manual focus is always available. Adjust the focus ring at any time, regardless of whether you use AF or MF mode.
Distortions can be corrected in Phocus or other image-processing software for more accurate optical effects. The camera itself does not support lens correction.
The equivalent focal length is approximately 16-27mm.
Sixteen elements in twelve groups, including three aspherical elements.
A stepping motor.
Internal focusing.
XCD 3,2-4,5/20-35E weighs 805g and measures 81 × 117mm. For more details, refer to the datasheet.
XCD 3,2-4,5/20-35E adopts a filter thread with a diameter of 77mm, which supports installing all types of 77mm-diameter filters.
XCD 3,2-4,5/20-35E includes some sealing at the seams, but it is not rated for dust or water resistance. It is recommended to avoid using this lens in dusty or wet conditions.
