Equivalent to a 22mm focal length, the XCD 4/28P wide-angle lens is only 245g, 43.5mm in length, and features an F4.0 aperture, making it ideal for street photography. With its superior optical design delivering outstanding image quality and precise focusing technology for instant shots, the XCD 4/28P captures a wide range of extraordinary scenes from nature, city streets, and urban architecture.
The lens carries on the innovative design language of the XCD Series lenses, incorporating a metal body and a focus ring delicately engraved with a Hasselblad “H” pattern, signifying Hasselblad’s ongoing legacy of exquisite craftsmanship.
Measuring 43.5mm in length and 245g in weight, XCD 4/28P is the lightest and smallest lens of the Hasselblad X System.* This portable and powerful lens allows you to capture the world in the palm of your hand.
Capturing a classic concerto of light and shadow begins with the lens. XCD 4/28P adopts an optical structure of nine elements in eight groups, including two aspherical elements and one ED element, which ensures excellent imaging while effectively suppressing chromatic dispersion. With a thoughtfully crafted arrangement, the lens has a compact size and a powerful performance, meeting the resolution requirements of 100 million pixels. The lens yields sharp imaging with high precision and high resolution from the centre to the edges, achieving stunning image quality across the frame.
A slightly wider angle enables distinctly bigger scenes. The wide-angle lens with a 22mm equivalent focal length and F4.0 aperture makes it easy to capture nature, street culture, and urban architecture. With a 22cm minimum focusing distance and 1:6 magnification, rich close-ups of flowers, cuisine, and much more are effortlessly captured.

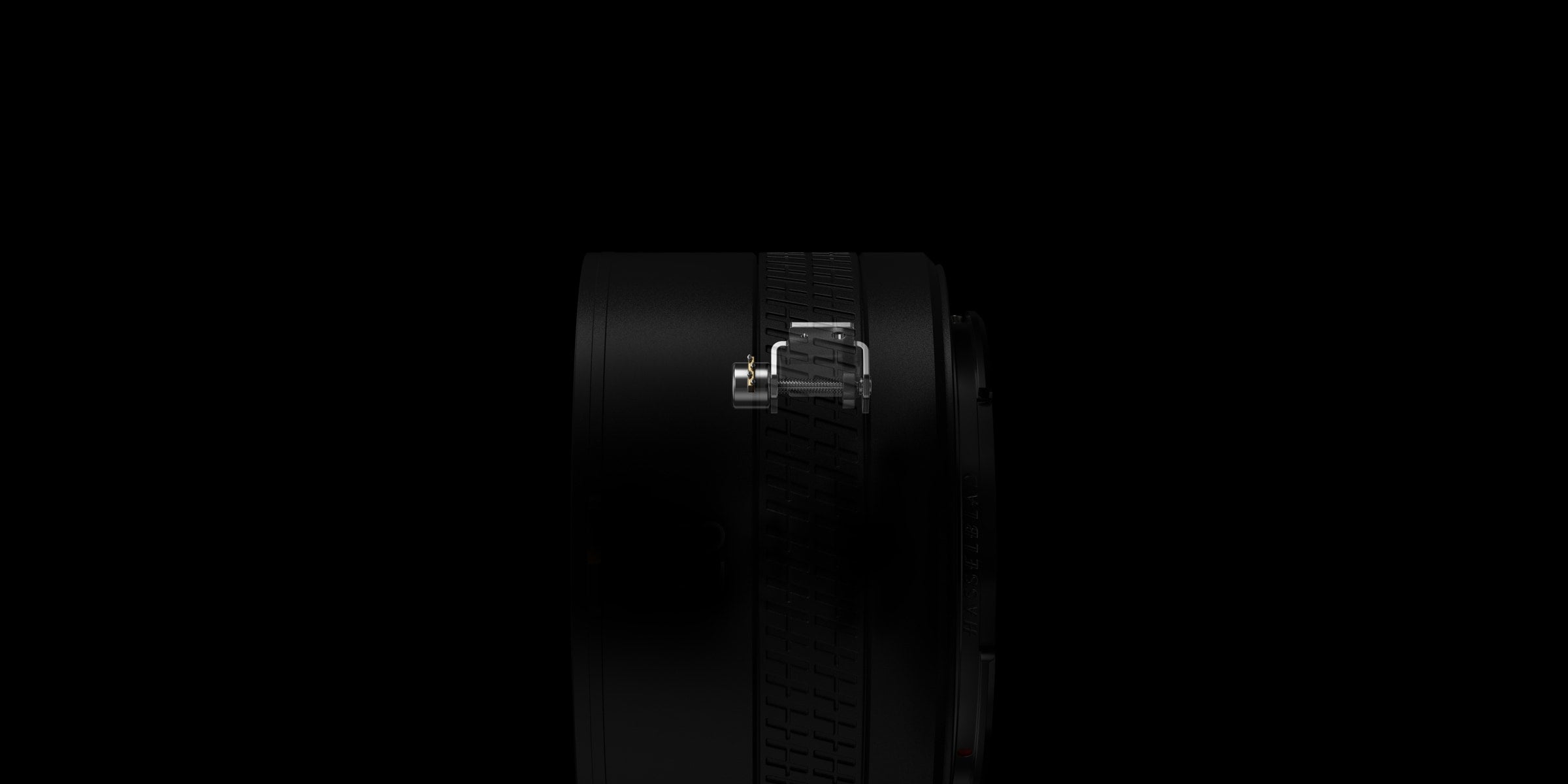

XCD 4/28P sports a linear stepping motor and a lighter, smaller focusing lens group. When used with the PDAF technology of X2D 100C, the focusing lens group can quickly reach the focusing position and achieve a precise stop. This results in fast, accurate, and responsive focusing, so your scene is captured before the click of the shutter.
XCD 4/28P sports a linear stepping motor and a lighter, smaller focusing lens group. When used with the PDAF technology of X2D 100C, the focusing lens group can quickly reach the focusing position and achieve a precise stop. This results in fast, accurate, and responsive focusing, so your scene is captured before the click of the shutter.
XCD 4,0/28P Lens × 1
Lens Shade × 1
Front Lens Cap × 1
Rear Lens Cap × 1
Lens Protective Pouch × 1
Hasselblad X System cameras & 907X cameras
 |
 |
 |
|
XCD 4/28P
|
XCD 4/45P
|
XCD 3,4/75P
|
|
Lightweight Wide-Angle Street Lens
|
Lightweight Daily Lens
|
Lightweight Portrait Lens
|
|
$1,679 |
$1,099 |
$2,299 |
|
FOCAL LENGTH
|
||
|
28.0mm
|
46.2mm
|
75.0mm
|
|
EQUIVALENT FOCAL LENGTH (24×36)
|
||
|
22mm
|
36mm
|
59mm
|
|
APERTURE RANGE
|
||
|
f/4-f/32
|
f/4-f/22
|
f/3.4-f/32
|
|
ANGLE OF VIEW (DIAG/HOR/VERT)
|
||
|
89° / 76° / 60°
|
61° / 50° / 39°
|
40° / 32° / 25°
|
|
LENGTH/DIAMETER
|
||
|
48mm / 75mm
|
52mm / 80mm
|
76mm / 75mm
|
|
WEIGHT (EXCL. COVERS AND LENS SHADE)
|
||
|
245g
|
320g
|
398g
|
|
FILTER DIAMETER
|
||
|
72mm
|
62mm
|
72mm
|
|
MINIMUM DISTANCE OBJECT TO IMAGE PLANE
|
||
|
0.22m
|
/
|
/
|
|
MAXIMUM IMAGE SCALE
|
||
|
1:6.0
|
1：5：2
|
1:5:8
|
|
ELEMENTS
|
||
|
9 elements in 8 groups
|
9 elements in 8 groups
|
10 elements in 10 groups
|
|
FOCUS TYPE
|
||
|
Internal focusing
|
Full focusing
|
Internal focusing
|
The leaf shutter is built into the lens structure. Its most significant advantage is that it can achieve flash synchronisation at all speeds (e.g., flash sync speed of up to 1/4000s). This helps capture fast-moving subjects when a flash is used and is also helpful for wide-aperture portraits in strong lighting conditions or outdoors.
For cameras with a focal-plane shutter, when using flash, the shutter speed is limited to 1/125s or 1/250s, posing restrictions for creativity. Due to the special design of the leaf shutter, it generates significantly reduced vibration when triggered, efficiently producing quality shots.
Yes. Full-time manual focus is always available. Adjust the focus ring at any time, regardless of whether you use AF or MF mode.
No. XCD 4/28P does not have a control ring.
Distortions can be corrected in Phocus or other image-processing software for more accurate optical effects. The camera itself does not support lens correction.
The equivalent focal length is approximately 22mm.
The housing is made of metal.
Nine elements in eight groups, including two aspherical elements and one ED element.
A linear stepping motor.
Internal focusing.
XCD 4/28P weighs only 245g and measures 75 x 43.5mm, making it the lightest and smallest lens in the Hasselblad X System.* For more details, refer to the datasheet.
* As of August 2023.
XCD 4/28P adopts a filter thread with a diameter of 72mm, which supports installing all types of 72mm-diameter filters.
IP52.
